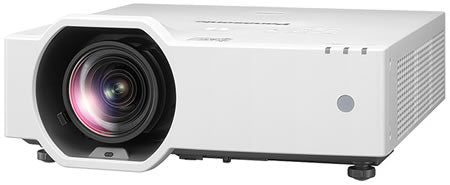

Panasonic PT-VMZ7ST
$8,489
Premium commercial simulator rooms and high-brightness short-throw installs.
Golf Simulator Projectors
Choosing the right projector depends on screen size, throw distance, brightness, ceiling height, mounting position and whether the room is residential or commercial.
Quick buyer guide
Throw distance
Match image width to the projector throw ratio before choosing a model.
Brightness
Larger screens, brighter rooms and venues need more usable light.
Resolution
1080p, WUXGA and 4K each suit different rooms and budgets.
Mount position
Ceiling height, enclosure depth and ball protection matter.
Aspect ratio
Screen shape must align with projector and PC output.
Commercial use
Prioritise laser, brightness, durability and service access.
Golf Simulator Projector Guide
Why projector choice matters
The projector has to fit the screen, avoid player shadows, stay bright enough and mount safely inside the simulator room.
Throw distance explained
Throw distance = image width × throw ratio. If image width is 4000mm and throw ratio is 0.5, the projector sits around 2000mm from the screen.

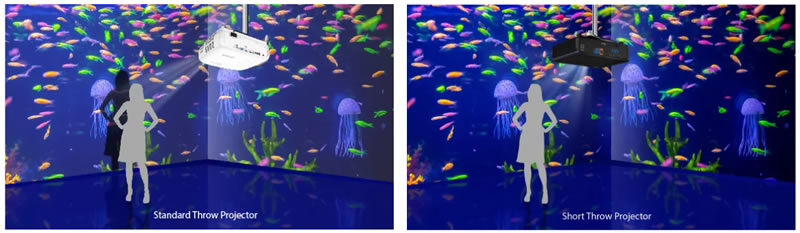

Short throw vs standard throw
Short throw usually reduces shadow risk. Standard throw can work in deeper rooms but needs careful placement.
Aspect ratio
Match projector, PC output and screen shape to avoid stretching, cropping or overspill around the enclosure.
Brightness
Controlled residential rooms need less brightness than large screens, bright rooms or commercial venues.
Resolution
1080p, WUXGA and 4K can all work. The right choice depends on screen size, PC output and room expectations.
Mounting and protection
Check ceiling height, bracket drop, cable path, lens offset and whether the projector needs ball protection.
Recommended categories
Compact rooms, bright residential rooms, commercial venues, premium 4K rooms and large-format installs need different projectors.
Comparison grid
Use the table below to compare brightness, throw, resolution and UGolf install notes before opening a product page.
Final check
Send UGolf your screen size, ceiling height and mount position before ordering if the room is tight.
Projector comparison
| Brand | Model | Price | Lumens | Resolution | Throw type | Throw ratio | Best for | UGolf note | View |
|---|---|---|---|---|---|---|---|---|---|

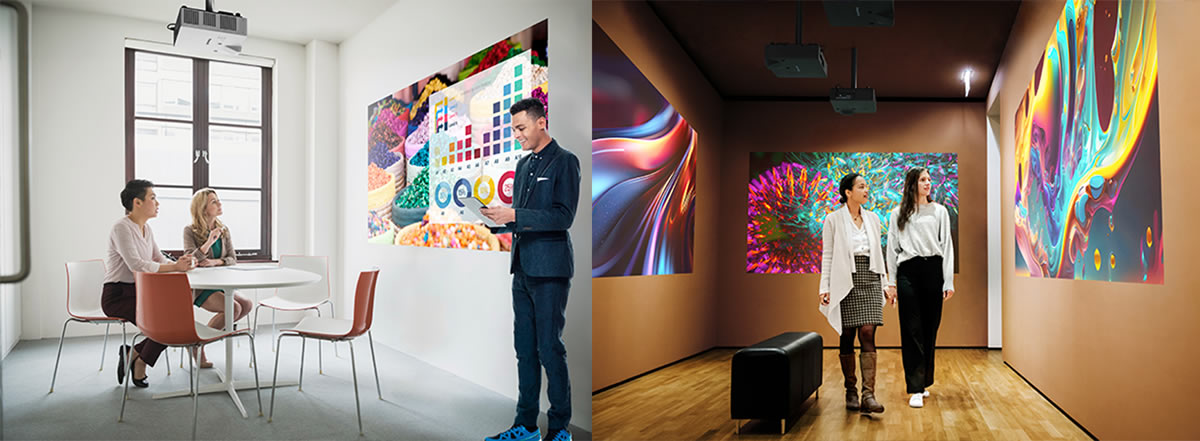

| Panasonic | PT-VMZ7ST | $8,489 | 7000 | WUXGA (1920 x 1200, 16:10; supports 21:9) | Short throw | 0.797–1.01:1 | Premium commercial simulator rooms and high-brightness short-throw installs. | High-brightness short-throw option in this selected range. Often suited to commercial or premium rooms where placement flexibility and brightness matter. | View product |
| Panasonic | PT-VMZ6ST | $7,189 | 6200 | WUXGA (1920 x 1200, 16:10; supports 21:9) | Short throw | 0.797–1.01:1 | Premium simulator rooms needing short-throw placement and flexible image setup. | Premium short-throw Panasonic option. 21:9 support and curved screen correction make it useful for wider simulator spaces. | View product |
| Panasonic | PT-VMZ82 | $6,489 | 8000 | WUXGA (1920 x 1200, 16:10) | Standard throw | 1.09–1.77:1 | High-brightness commercial and premium simulator rooms with suitable throw distance. | High-brightness standard-throw option in this selected range. Best considered where the room can support correct mounting distance and avoid player shadow. | View product |
| Panasonic | PT-VMZ72 | $5,489 | 7300 | WUXGA (1920 x 1200, 16:10) | Standard throw | 1.09–1.77:1 | Brighter standard-throw simulator builds; commercial bays needing 7,300 lumens for ambient light tolerance. | Strong brightness step over VMZ62. Works well where ambient light control is not perfect. 1.09-1.77:1 throw with 1.6x optical zoom + Digital Zoom Extender and lens shift (V +44%, H ±20%). 7.0kg unit. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |
| Panasonic | PT-VMZ62 | $4,989 | 6500 | WUXGA (1920 x 1200, 16:10) | Standard throw | 1.09–1.77:1 | Mid-range standard-throw golf simulator builds where the projector can be ceiling-mounted ~3-4m from screen; high lumens for bright bays. | Higher-contrast VMZ8x chassis option. Suitable for well-planned standard-throw simulator rooms. 1.09-1.77:1 throw with 1.6x optical zoom + Digital Zoom Extender and lens shift (V +44%, H ±20%). 6.9kg unit. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |
| Panasonic | PT-VMZ71 | $4,689 | 7000 | WUXGA (1920 x 1200, 16:10) | Standard throw | 1.09–1.77:1 | Premium VMZ standard-throw option — 7,000 lumens for high-brightness sim bays; premium residential sim builds. | High-brightness VMZ standard-throw option in this selected range. Good for larger rooms where throw distance and player shadow can be managed. 1.09-1.77:1 throw with 1.6x optical zoom and lens shift (V +44%, H ±20%). 7.0kg unit. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |

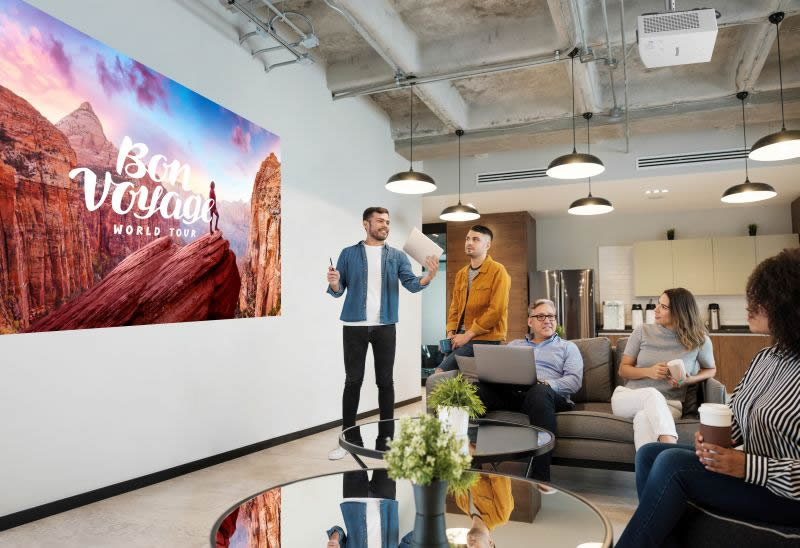

| Panasonic | PT-VMZ61 | $4,289 | 6200 | WUXGA (1920 x 1200, 16:10) | Standard throw | 1.09–1.77:1 | Mid-tier Panasonic standard-throw simulator option; sim bays with moderate ambient light. | Mid-tier standard-throw Panasonic option. Useful where brightness matters and the room allows rearward ceiling mounting. 1.09-1.77:1 throw with 1.6x optical zoom and lens shift (V +44%, H ±20%). 6.9kg unit. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |
| Panasonic | PT-VMZ51 | $3,989 | 5200 | WUXGA (1920 x 1200, 16:10) | Standard throw | 1.09–1.77:1 | Entry-level Panasonic standard-throw simulator option; budget-conscious mid-tier sim builds. | Lightest of the VMZ standard-throw range. Best where the projector can sit further back without player shadow issues. 1.09-1.77:1 throw with 1.6x optical zoom and lens shift (V +44%, H ±20%) gives flexible mount placement. 6.5kg unit. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |
| BenQ | LK936ST | $8,289 | 5100 | 4K UHD (3840x2160) | Short throw | 0.81–0.89:1 | High-brightness 4K option for golf and large-venue installs in bright environments | Same body and install footprint as the LU935ST — 0.81-0.89:1 throw with full lens shift and 3D keystone. Choose this over the LU935ST when 4K detail or maximum keystone flexibility is needed. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |
| BenQ | LU935ST | $4,489 | 5500 | WUXGA (1920x1200) | Short throw | 0.81–0.89:1 | Bright commercial environments — golf sim, flight sim, retail, corporate | 0.81-0.89:1 throw with full lens shift. For a 3m wide screen, plan for the projector to sit roughly 2.4-2.7m back. 7kg unit suits standard ceiling-mount class. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |

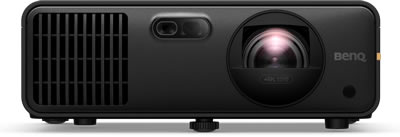

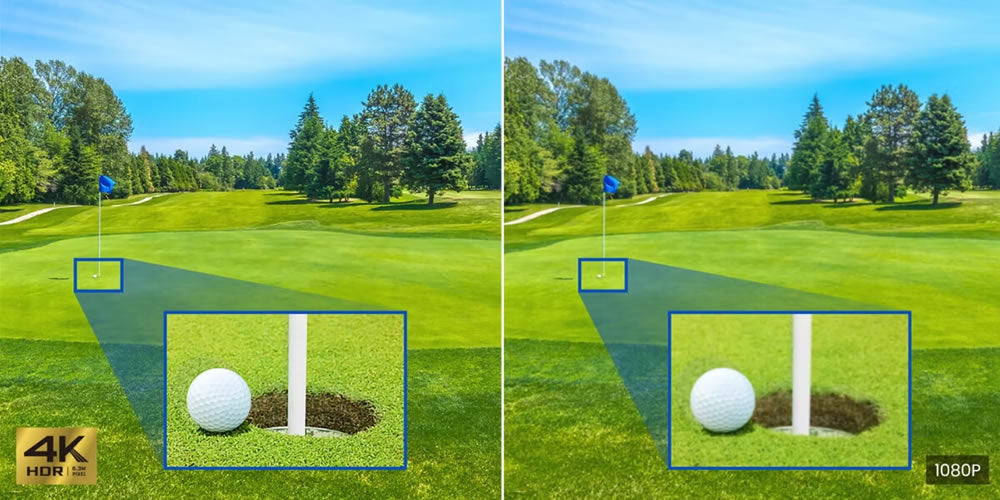

| BenQ | AK700ST | $4,489 | 4000 | 4K UHD (3840x2160) | Short throw | 0.69–0.83:1 | Premium golf simulation with 4K detail; doubles as home theatre | Same install footprint as the AH700ST — 1.2x motorised zoom, 0.69-0.83:1 throw. For a 3m wide screen, plan for the projector to sit roughly 2.0-2.5m back. Choose this over the AH700ST when 4K detail is preferred. UGolf can check projector fit against your room dimensions. | View product |

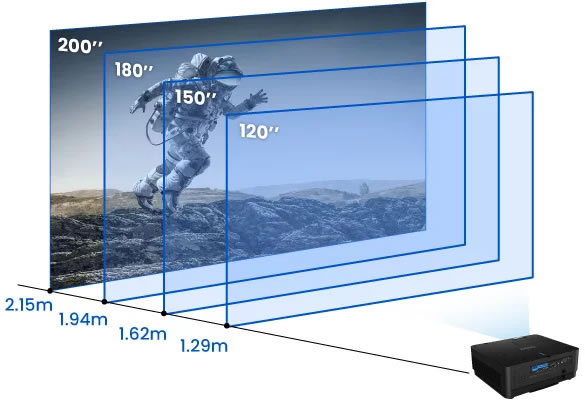

| BenQ | LU960ST2 | $3,989 | 5200 | WUXGA (1920x1200) | Short throw | 0.5:1 | Commercial / premium permanent installs — golf, flight sim, edge-blended displays | Fixed 0.5:1 short throw with full lens shift — best suited to a permanent install where the projector position can be set during build. 12kg unit, so the ceiling mount needs to be rated. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |

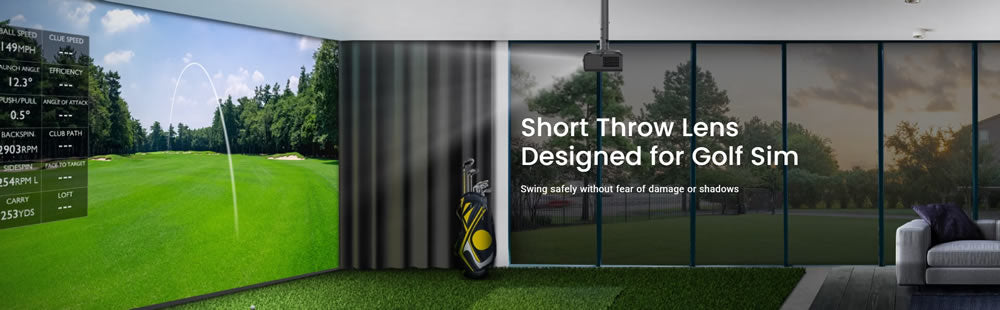

| BenQ | AH700ST | $2,989 | 4000 | 1080p (1920x1080) | Short throw | 0.69–0.83:1 | Versatile FHD short throw for golf sim enclosures needing throw flexibility | 1.2x motorised zoom and 0.69-0.83:1 throw range gives flexibility for most residential simulator builds. For a 3m wide screen, plan for the projector to sit roughly 2.0-2.5m back. Lightweight (3.3kg) so most ceiling mounts will suit. UGolf can check projector fit against your room dimensions. | View product |

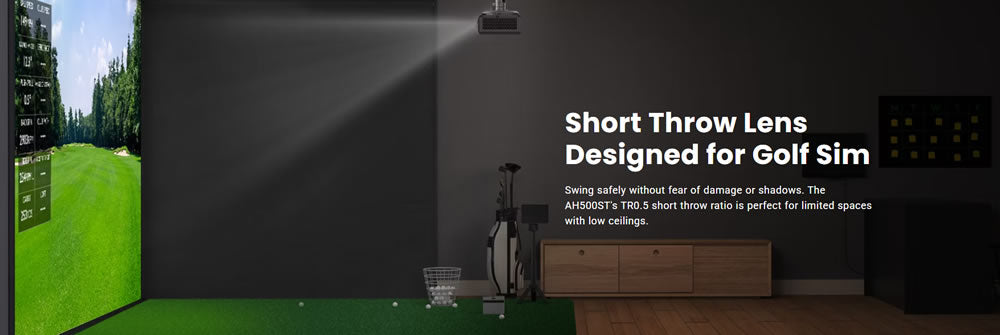

| BenQ | AH500ST | $2,989 | 4000 | 1080p (1920x1080) | Short throw | 0.499:1 | Golf simulation in tight enclosures with limited ceiling height and short projector-to-screen distance | Fixed 0.5:1 lens with no zoom or shift — projector position is set by the throw distance to your screen. For a 3m wide screen, plan for the projector to sit roughly 1.5m back. Confirm screen width, ceiling height and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |

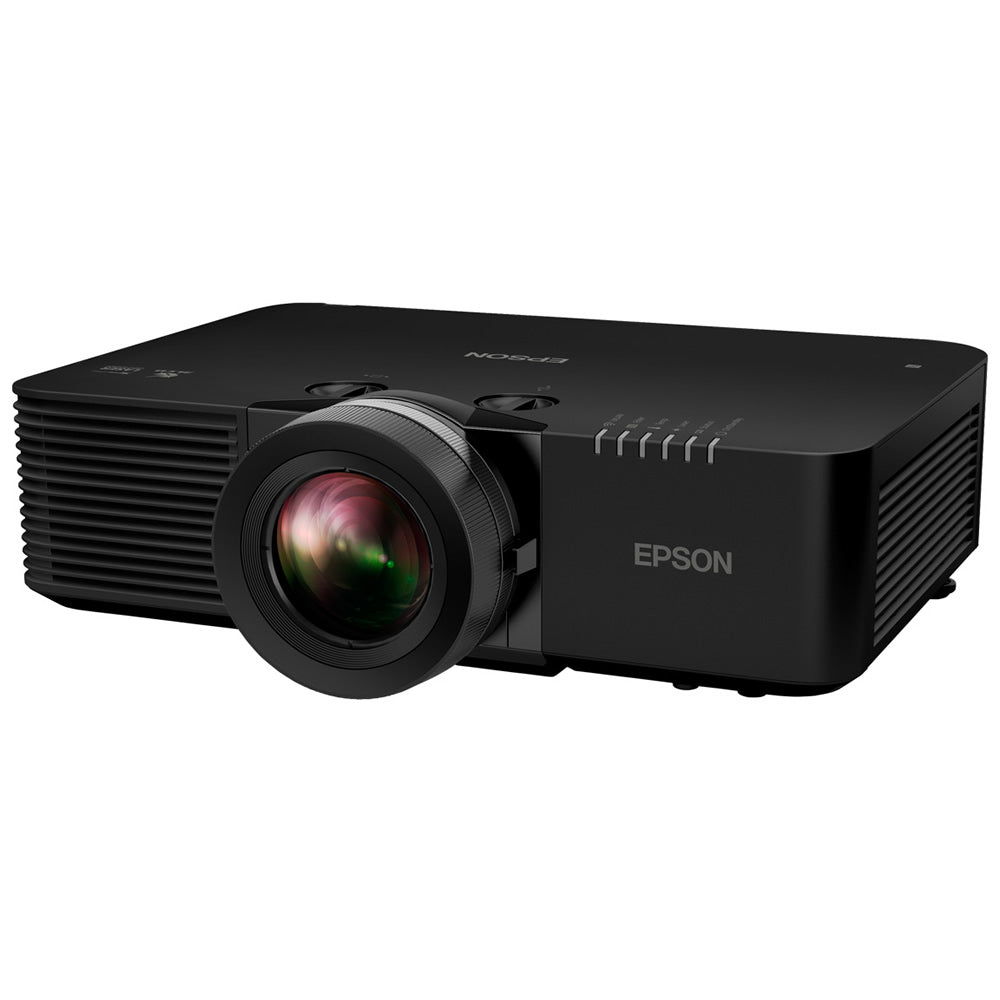

| Epson | EB-L795SE | $6,489 | 7000 | WUXGA with 4K Enhancement (1920 x 1200 x2, 16:10) | Short throw | 0.79–1.36:1 | High-output Epson option for premium golf simulator installs needing 7,000 lumens, 4K-enhanced WUXGA, and full lens shift; suits commercial/retail bays. | 0.79-1.36:1 short throw with optical 1.7x zoom and full lens shift (V ±50%, H ±20%). For a 3m wide screen, plan for the projector to sit roughly 2.4-4.1m back. 9.3kg ceiling-mount class. Choose this over the L790SU when 4K Enhancement is preferred. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |

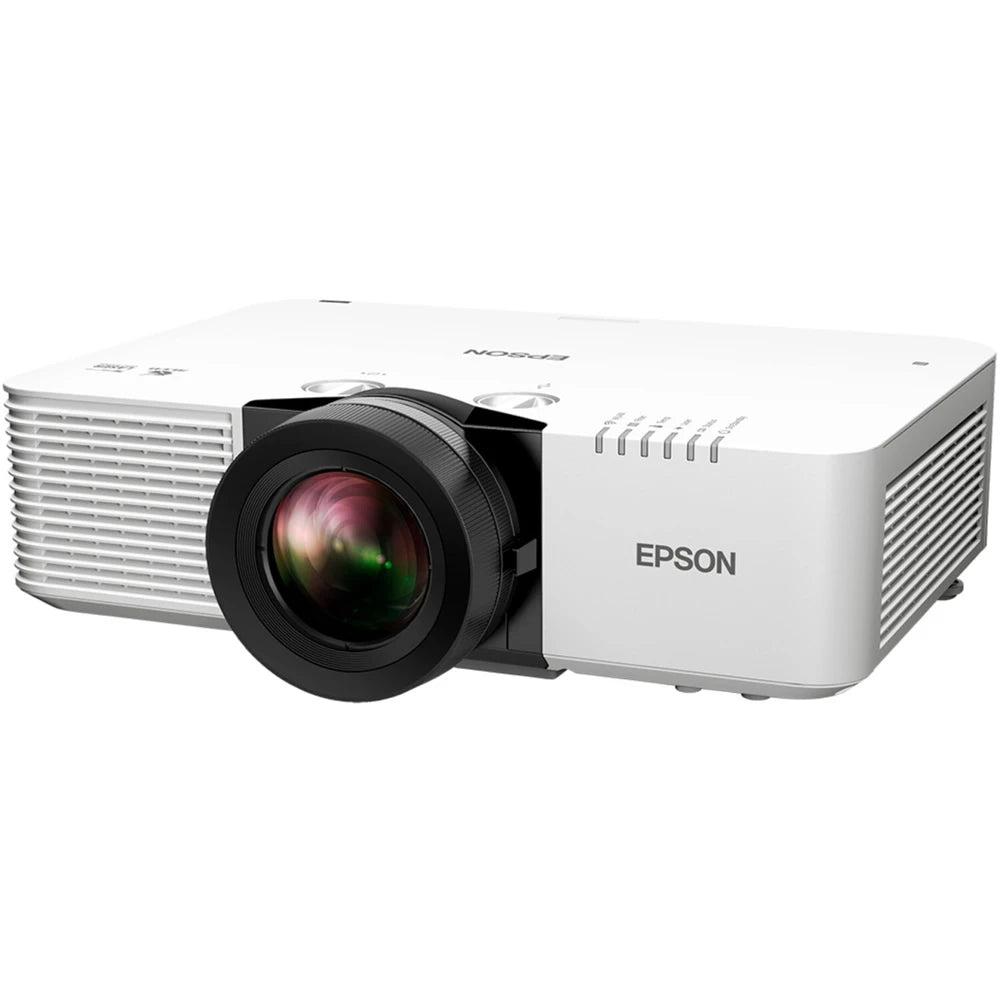

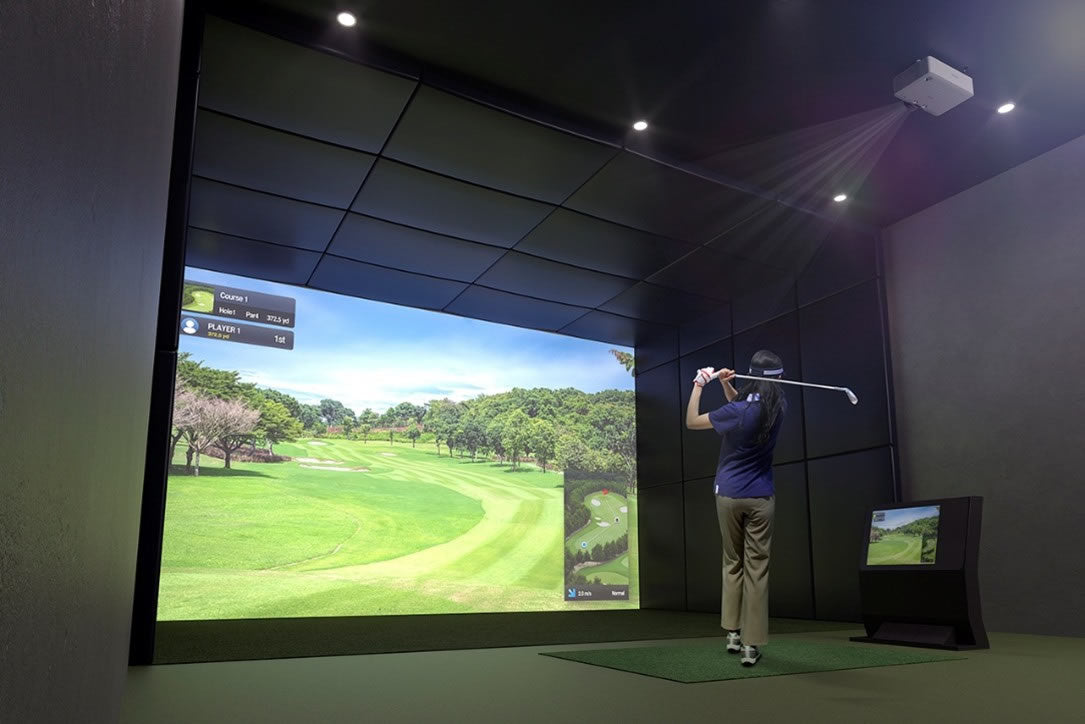

| Epson | EB-L790SU | $5,689 | 7000 | WUXGA (1920 x 1200, 16:10) | Standard throw | 0.79–1.36:1 | High-output standard-throw simulator builds where the projector can be mounted further back from screen; rooms with longer throw distance and bright ambient conditions. | 0.79-1.36:1 standard throw with optical 1.7x zoom and full lens shift (V ±50%, H ±20%). For a 3m wide screen, plan for the projector to sit roughly 2.4-4.1m back. 9.2kg ceiling-mount class. Best when short-throw mounting is not possible. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |
| Epson | EB-L690SE | $5,789 | 6000 | WUXGA with 4K Enhancement (1920 x 1200 x2, 16:10) | Short throw | 0.5–0.7:1 | Premium short-throw golf simulator installs needing high brightness, 4K-enhanced WUXGA, and proper lens shift for ceiling-mount alignment without keystone distortion. | 0.5-0.7:1 short throw with optical 1.4x zoom and full lens shift (V ±50%, H ±20%). For a 3m wide screen, plan for the projector to sit roughly 1.5-2.1m back. 9.3kg ceiling-mount class. Confirm screen width and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |

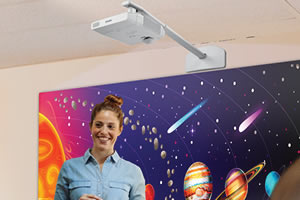

| Epson | EB-L210SF | $2,279 | 4000 | Full HD 1080p (1920 x 1080) | Short throw | 0.45–0.61:1 | Entry-level golf simulator builds where ceiling height is low and projector-to-screen distance is tight; budget-conscious installs that still need 4,000 lumens and 1080p clarity. | 0.45-0.61:1 short throw with digital zoom only and no lens shift — projector position is fixed by throw distance to the screen. For a 3m wide screen, plan for the projector to sit roughly 1.4-1.8m back. 4.6kg unit, easy to ceiling mount. Confirm screen width, ceiling height and mounting position before ordering. UGolf can check projector fit against your room dimensions. | View product |
Projector range
Panasonic PT-VMZ6ST
$7,189
Premium simulator rooms needing short-throw placement and flexible image setup.
Panasonic PT-VMZ82
$6,489
High-brightness commercial and premium simulator rooms with suitable throw distance.
Panasonic PT-VMZ72
$5,489
Brighter standard-throw simulator builds; commercial bays needing 7,300 lumens for ambient light tolerance.

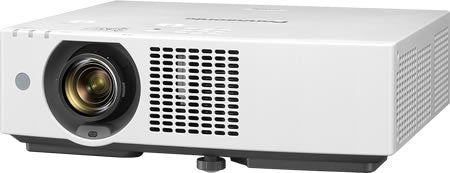

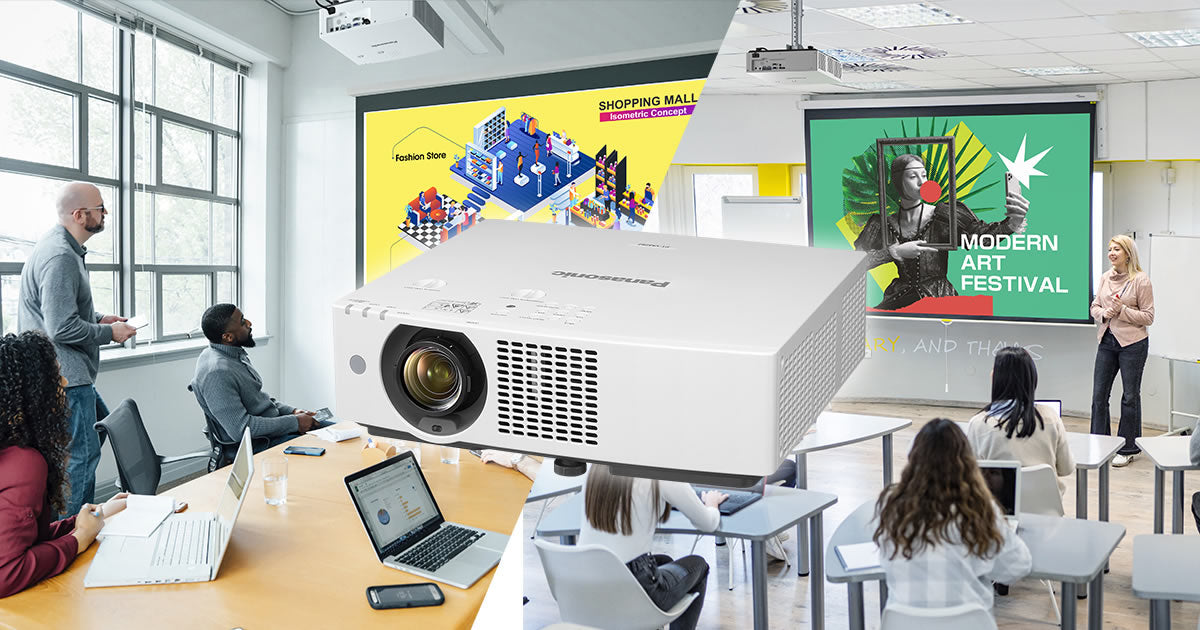

Panasonic PT-VMZ62
$4,989
Mid-range standard-throw golf simulator builds where the projector can be ceiling-mounted ~3-4m from screen; high lumens for bright bays.

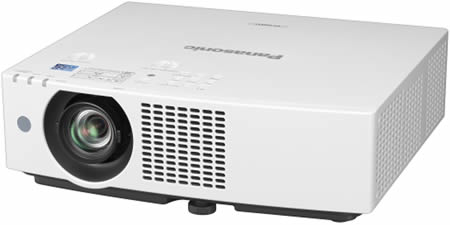

Panasonic PT-VMZ71
$4,689
Premium VMZ standard-throw option — 7,000 lumens for high-brightness sim bays; premium residential sim builds.
Panasonic PT-VMZ61
$4,289
Mid-tier Panasonic standard-throw simulator option; sim bays with moderate ambient light.
Panasonic PT-VMZ51
$3,989
Entry-level Panasonic standard-throw simulator option; budget-conscious mid-tier sim builds.

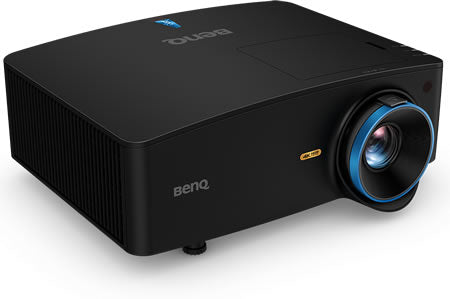

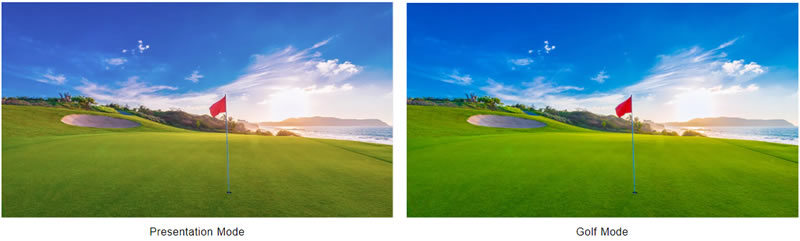

BenQ LK936ST
$8,289
High-brightness 4K option for golf and large-venue installs in bright environments

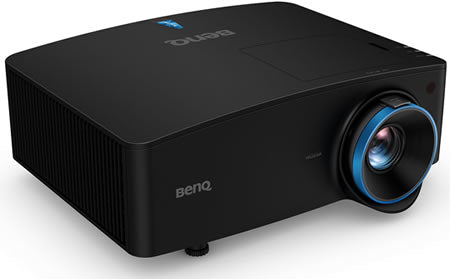

BenQ LU935ST
$4,489
Bright commercial environments — golf sim, flight sim, retail, corporate

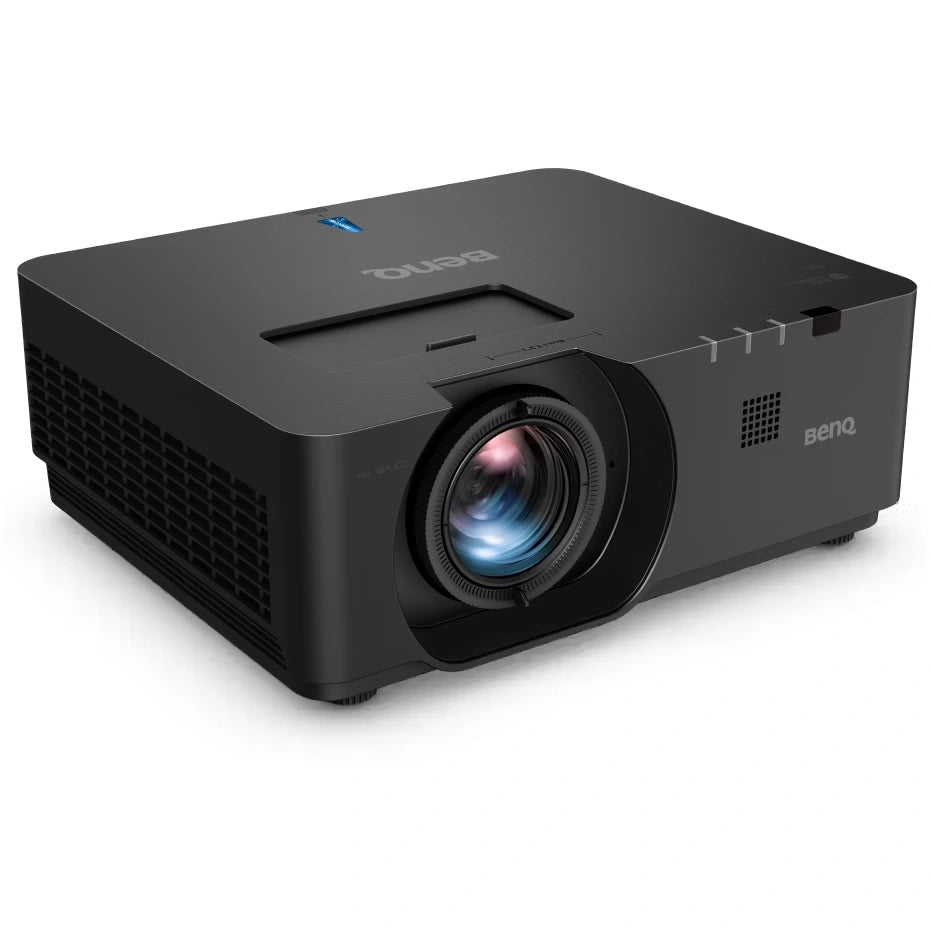

BenQ LU960ST2
$3,989
Commercial / premium permanent installs — golf, flight sim, edge-blended displays
BenQ AH700ST
$2,989
Versatile FHD short throw for golf sim enclosures needing throw flexibility

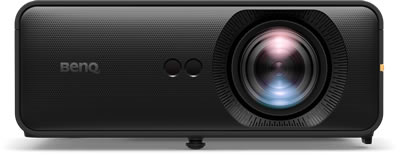

BenQ AH500ST
$2,989
Golf simulation in tight enclosures with limited ceiling height and short projector-to-screen distance
Epson EB-L795SE
$6,489
High-output Epson option for premium golf simulator installs needing 7,000 lumens, 4K-enhanced WUXGA, and full lens shift; suits commercial/retail bays.
Epson EB-L790SU
$5,689
High-output standard-throw simulator builds where the projector can be mounted further back from screen; rooms with longer throw distance and bright ambient conditions.

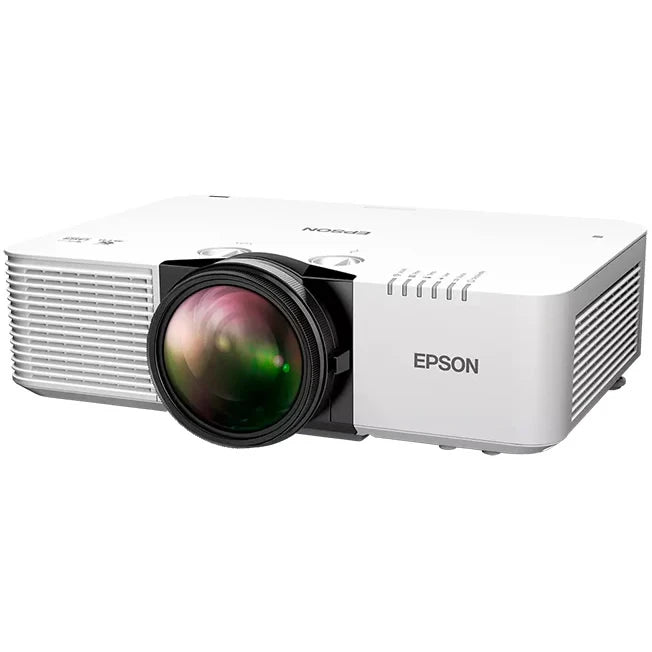

Epson EB-L690SE
$5,789
Premium short-throw golf simulator installs needing high brightness, 4K-enhanced WUXGA, and proper lens shift for ceiling-mount alignment without keystone distortion.

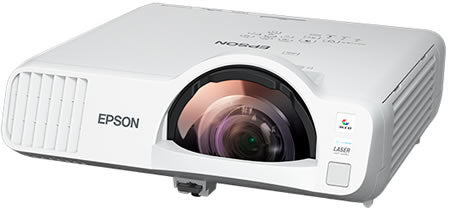

Epson EB-L210SF
$2,279
Entry-level golf simulator builds where ceiling height is low and projector-to-screen distance is tight; budget-conscious installs that still need 4,000 lumens and 1080p clarity.
Not sure which projector suits your room?
Send us your screen size, ceiling height and mounting position before ordering.
